Third Ave Bridge - Minneapolis
Minneapolis, Minnesota, United States

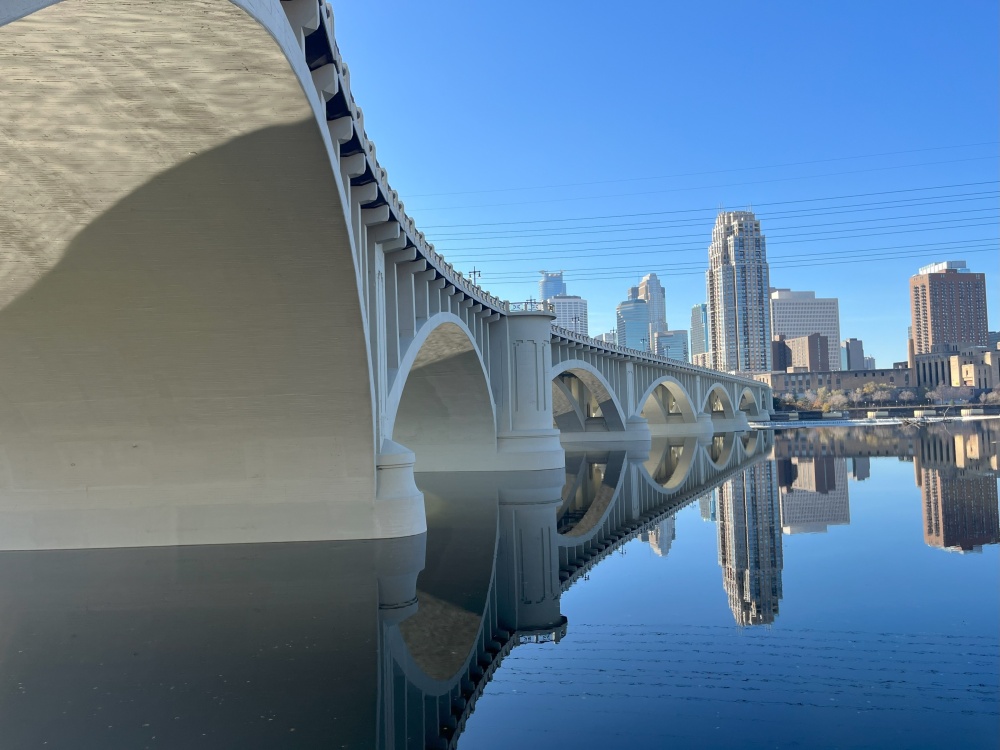

The Third Avenue Bridge is a nearly 2000-foot, 100+ year-old structure that spans the Mississippi.
Work Types: Concrete Repair
Owner: Minnesota Department of Transportation
Consultant: HNTB, WJE, ONE
Opened to traffic in 1918, this downtown Minneapolis landmark structure utilizes a melan truss reinforcing system in its arches. Over the century, it has received a handful of rehabs (1939, 1979-80 major, 2003, 2014) and is listed as one of MNDOTs historically significant bridges.
We hosted an on-site presentation for the various repair technique and technologies used during this project. Check out the recording here:
The Problem
Surveys indicated that significant deterioration needed to be addressed on multiple elements, including the deck and cap beams, arch ribs, and pier bases.
MNDOT wanted to achieve a target service life extension of 50 years. To ensure they knew what would be required to achieve this, an extensive condition assessment was completed to identify the deterioration mechanisms of the historic concrete. This assessment found chloride-induced corrosion damage & freeze-thaw damage to be the main culprits.
The project scope included replacing the deck and spandrel columns/walls and repair of the arches and piers.
Our Solution

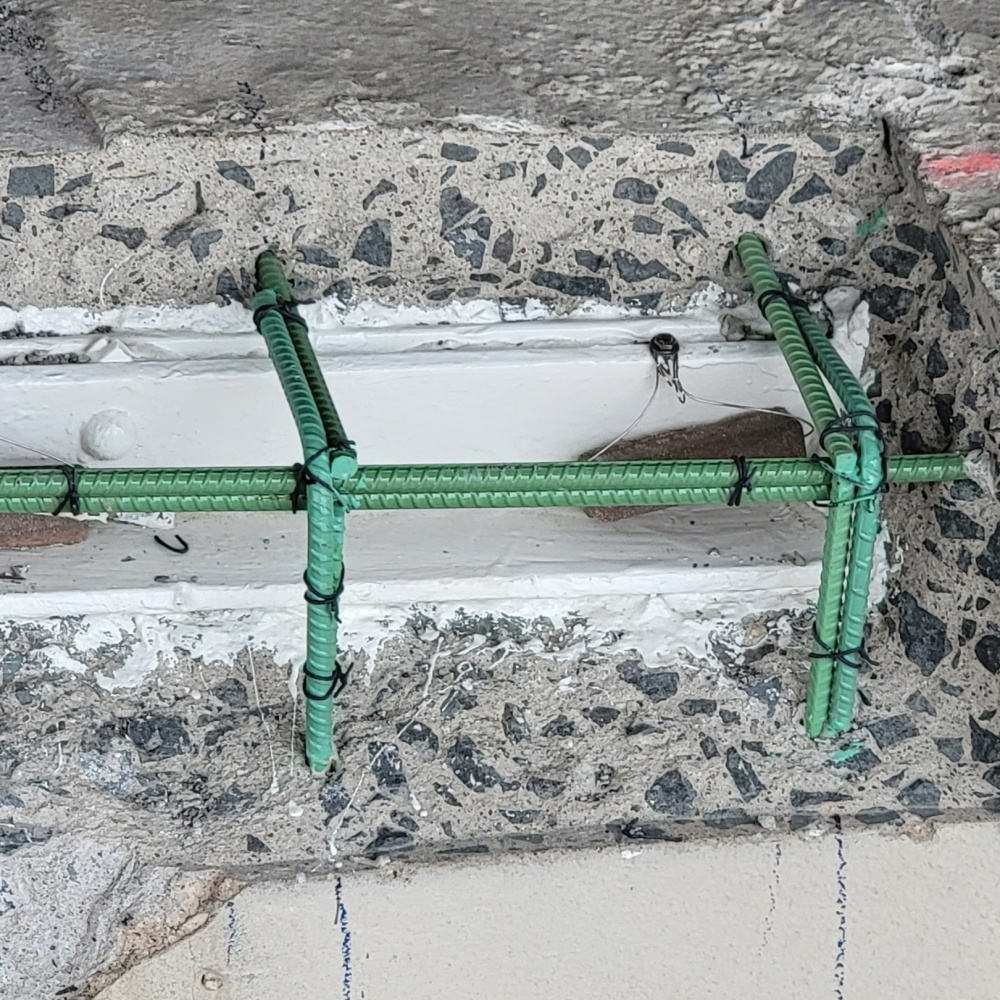

The consultant chose to protect the deteriorated arch corners with Galvashield® DAS and Galvashield® XP4 anodes, the most vulnerable spot on the bridge. Corrosion Potential (Half-cell) field testing showed a high potential for active corrosion in certain areas of the arch corners. In areas not yet deteriorated by corrosion but at a high risk of corroding, a custom two-phase Galvashield® Fusion® T2 anode system was installed for a high-powered and long-lasting repair. The activated arc spray zinc, (Galvashield ASZ+) was used on access stairs and abutments.
The Result
In concert with the larger repair scope performed on the bridge, Vector’s solutions helped the Minnesota DOT extend the expected service life of the bridge another 50 years. The corrosion mitigation options allowed the DOT to save the bulk of the original, historic Melan Steel reinforced concrete arches, giving the historic structure a brand new life.
Technology Used
These innovative products and technologies were used on this project.
